cybersecurity , API , data security , OAuth2

OAuth2 Authentication: Best Practices and Implementation

By Luis Flores
February 20, 2025

In today’s app landscape, OAuth2 has become the go-to method for secure authentication, whether we’re using Microsoft, Google, or other providers. It's essential for exchanging data securely, but implementing OAuth2 from scratch can be tedious, especially if your app doesn’t need anything fancy beyond what’s already offered by these platforms.



Today, I want to take you through the OAuth2 process, share some insights on the terminology, and give a hands-on walkthrough of how we use OAuth2 for authentication. Whether you're using it in your app for Microsoft or Google, you’ll see how simple the process becomes once you break it down.





What is OAuth2?

OAuth2 is a protocol for secure data exchange between two parties, like your app and a trusted provider (e.g., Microsoft). Instead of storing sensitive user credentials yourself, OAuth2 allows your app to verify users via providers securely.

There are multiple ways to implement OAuth2, depending on your needs. Today, I’m going to focus on two types: the Authorization Code Flow and the Client Credentials Flow. One is for user authentication for our applications, and the other is for machine-to-machine interactions, mostly for API’s.

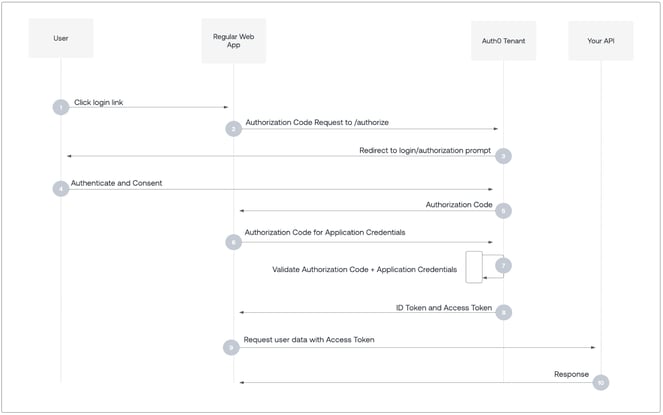

Authorization Code Flow: A Step-by-Step Guide

When implementing OAuth2, one of the most common methods is the Authorization Code Flow. This process starts when the user requests access to an app and is redirected to a login page from the provider—in this case, Microsoft.

Let’s walk through the steps:

  1. User Requests Authentication: The first step is redirecting the user to the Microsoft login page, where they will enter their credentials. This is the part we’re all familiar with: enter your email and password and, if necessary, complete multi-factor authentication (MFA).
  2. Authorization Screen: After logging in, Microsoft displays an authorization screen that asks the user to confirm that they want to give your app access to specific data (email, name, etc.). Depending on the permissions you’ve requested, this could also include access to things like the user’s calendar or OneDrive.
  3. Authorization Code: Once the user approves the request, Microsoft sends an authorization code back to your app. This is where your callback URL comes into play—you need to specify where Microsoft should send this code, which is essentially your app’s endpoint to receive the user data.
  4. Token Exchange: After receiving the authorization code, your app exchanges it for an access token. This token is the key to accessing the user’s information, which is sent back to you from Microsoft.
  5. Accessing Data: Once you have the token, your app can start making requests for user data, whether it’s an email address or other information you’ve requested authorization for. At this point, your app can act on behalf of the user.

This three-legged flow ensures security while still allowing apps to interact with the user's data seamlessly.

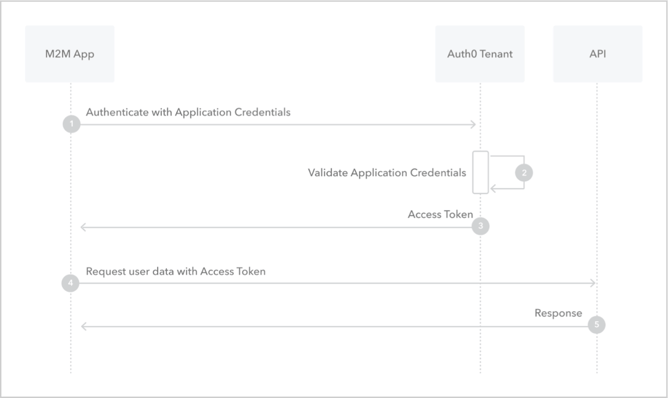

Client Credentials Flow: Machine-to-Machine Authentication

Now, if you’re looking for a simpler flow that doesn’t involve a user, the Client Credentials Flow is where OAuth2 shines for machine-to-machine interactions.

In this flow, there’s no user involved. Instead, your app directly communicates with the provider (Oracle REST API), requesting data access with a pre-defined client ID and client secret. This is especially useful when you’re integrating with services that need to communicate without a user present, like background tasks or data synchronization.



With Client Credentials Flow, the process is even more streamlined:

  1. Client ID and Secret: Your app provides its unique client ID and client secret to the provider. These act as your app’s "username" and "password" for authentication purposes.
  2. Token Request: Once authenticated, Microsoft sends back an access token, which allows your app to request data on behalf of the machine.


Securing Your API: Don’t Give Away Your Secrets

You shouldn’t give away your secret too easily. In API design, ensuring that your authentication and authorization processes are securely handled is crucial. This means having well-defined access control, and depending on your configuration, certain secrets may be hidden while others may be exposed.



Using tools like Postman to replicate API calls is invaluable when testing OAuth2 implementations. Postman simplifies token requests, helping you test restricted endpoints and manage authentication flows effectively.



One thing to keep in mind is that, depending on how client credentials are configured, the authentication process may differ slightly. You’ll need to ensure the correct scopes and permissions are in place to avoid issues like access denial or incomplete responses. For example, when querying OneDrive via the API, if there’s a misconfiguration, you might face access denial even if the token retrieval was successful.





Wrapping Up

OAuth2 is a powerful tool for securing your apps. Whether you’re implementing an Authorization Code Flow for user authentication or a Client Credentials Flow for machine-to-machine interactions, the process is straightforward once you break it down.



Managing tokens, defining scopes, and testing through tools like Postman will save you time and ensure your API meets the necessary security standards. If you have any questions or want to see more in-depth examples, feel free to reach out. I’m always happy to help others dive deeper into authentication and improve their app security.
