Unlock Passwordless Authentication in Oracle APEX with Passkeys

Did you know that 81% of data breaches are caused by weak or stolen passwords? As developers, we've all faced the challenge of securing user authentication while maintaining a smooth user experience. Enter passkeys—the next generation of passwordless authentication built on the WebAuthn standard. This post explains how we implemented passkeys in Oracle APEX and introduces a custom plugin that makes integration seamless for developers.

Prerequisites

Before diving into implementation, ensure you have:

• Oracle APEX 21.1 or higher
• AS_CRYPTO package version 1.2 or higher
• Modern browsers with WebAuthn support:
  • Chrome 67+
  • Firefox 60+
  • Safari 13+
  • Edge 79+

What Are Passkeys?

Passkeys represent a revolutionary approach to authentication that eliminates traditional passwords. They leverage public-key cryptography, where private keys are securely stored on the user's device, and public keys are stored in the application's backend. With passkeys, users authenticate with something they are (biometric data) or have (a security key), making passwords obsolete.

Key Benefits

1. Enhanced Security
   • Phishing-resistant by design
   • Immune to credential stuffing attacks
   • No shared secrets to compromise
   • Hardware-backed security on modern devices
2. Improved User Experience
   • No passwords to remember or type
   • Login times reduced by up to 70%
   • Consistent experience across devices
   • Native biometric integration
3. Reduced Operational Costs

   • 80% fewer support tickets related to authentication
   • Eliminated password reset workflows
   • Lower security incident response costs
   • Simplified compliance requirements
4. Enterprise-Ready

   • FIDO Alliance certified
   • Built on proven WebAuthn standards
   • Cross-platform compatibility
   • Seamless integration with existing systems

How Passkeys Work

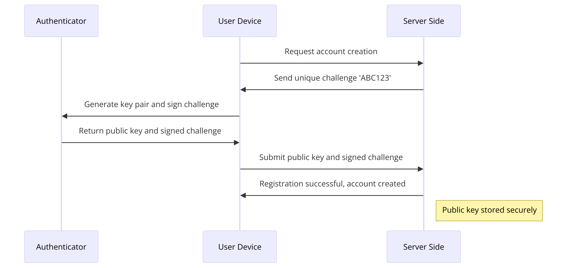

1. Registration Flow

   1. User initiates registration
   2. Server generates challenge
   3. Device creates key pair
   4. Public key stored on server
   5. Private key secured on device

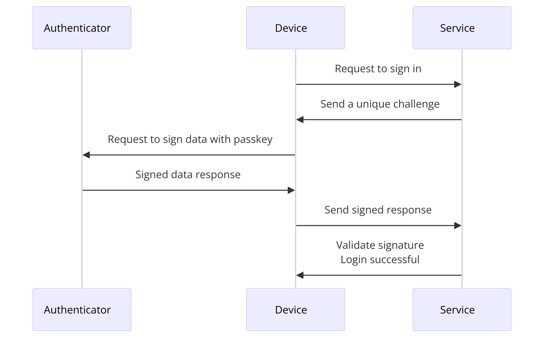

2. Authentication Flow

   1. User initiates login
   2. Server issues challenge
   3. Device signs challenge
   4. Server verifies signature
   5. Access granted upon validation


Implementing Passkeys in Oracle APEX with AS_CRYPTO

We used the AS_CRYPTO package to handle all cryptographic operations for passkey validation, including hashing, signature verification, and public key decoding. Here’s how each major step works:

Step 1: Setting Up Credential Enrollment

The application must create a challenge and configure the public_Key options for
navigator.credentials.create(). Once a user registers, the public key and credential ID are stored in a secure table.

Example Table Schema

CREATE TABLE biometrics_credentials (
    id NUMBER GENERATED BY DEFAULT ON NULL AS IDENTITY,
    user_id VARCHAR2(255) NOT NULL,
    credential_id VARCHAR2(255) NOT NULL,
    public_key CLOB NOT NULL,
    created_at TIMESTAMP WITH TIME ZONE DEFAULT SYSTIMESTAMP NOT NULL,
    last_used_at TIMESTAMP WITH TIME ZONE
);

Example Code for Challenge Generation (PL/SQL)

DECLARE
    l_challenge RAW(32);
BEGIN
    l_challenge := AS_CRYPTO.RANDOMBYTES(32);

    -- Convert to base64url for JSON usage
    DBMS_OUTPUT.PUT_LINE(AS_CRYPTO.ENCODE_BASE64URL(l_challenge));
END;

Client-Side Code for Enrollment

const options = {
    publicKey: {
        challenge: Uint8Array.from(window.atob('YOUR_BASE64_CHALLENGE'), c => c.charCodeAt(0)),
        rp: {
            name: "Your App Name",
            id: window.location.hostname
        },
        user: {
            id: Uint8Array.from("USER_ID", c => c.charCodeAt(0)),
            name: "username",
            displayName: "User Display Name"
        },
        pubKeyCredParams: [
            { type: "public-key", alg: -7 }, // ES256
            { type: "public-key", alg: -257 } // RS256
        ],
        authenticatorSelection: {
            userVerification: "preferred",
            residentKey: "preferred"
        },
        timeout: 60000
    }
};

try {
    const credential = await navigator.credentials.create(options);

    // Send credential to server and securely store the credential ID and public key
    await submitCredentialToServer(credential);
} catch (err) {
    console.error('Enrollment failed:', err);

    // Handle error appropriately
}

Step 2: Authentication Implementation

Authentication requires fetching the stored public_key and verifying the signature.

Server-Side Signature Validation

DECLARE
    l_client_data_hash RAW(32);
    l_data_to_verify RAW(32767);
    l_signature RAW(64);
    l_public_key RAW(32767);
    l_verification_result BOOLEAN;
BEGIN
    -- Hash the client data
    l_client_data_hash := AS_CRYPTO.HASH(
        AS_CRYPTO.ENCODE('{"type":"webauthn.get"}'),
        AS_CRYPTO.HASH_SH256
    );

    -- Combine authenticator data and client data hash
    l_data_to_verify := UTL_RAW.CONCAT(
        :authenticator_data,
        l_client_data_hash
    );

    -- Verify the signature
    l_verification_result := AS_CRYPTO.VERIFY(
        l_data_to_verify,             -- expected value (original msg)
        :raw_signature,               -- signature
        l_public_key,                 -- encoded public key
        AS_CRYPTO.KEY_TYPE_EC,        -- key algo
        AS_CRYPTO.SIGN_SHA256withECDSAinP1363 -- key algo
    );

    IF NOT l_verification_result THEN
        RAISE_APPLICATION_ERROR(
            -20001,
            'Signature validation failed.'
        );
    END IF;
END;

Example Code for Successful Authentication Handler

-- Example of successful authentication handler
CREATE OR REPLACE PROCEDURE handle_passkey_auth (
    p_credential_id IN RAW,
    p_user_id IN NUMBER
) AS
    l_exists NUMBER;
BEGIN
    -- Verify credential exists and is valid
    SELECT 1
    INTO l_exists
    FROM biometrics_credentials
    WHERE credential_id = p_credential_id
    AND user_id = p_user_id
    AND created_at > SYSDATE - 365; -- Expire after 1 year

    -- Set up session state
    APEX_AUTHENTICATION.POST_LOGIN(
        p_username => p_user_id
    );

EXCEPTION
    WHEN NO_DATA_FOUND THEN
        RAISE_APPLICATION_ERROR(-20001, 'Invalid credential');
END;

The Oracle APEX Passkey Authentication Plugin

Manual implementation requires handling a range of complex operations, from constructing WebAuthn JSON options to securely managing cryptographic processes. The Oracle APEX Passkey Authentication Plugin simplifies these tasks:

• Dynamic Action Configuration: Easily set up enrollment, authentication, and status checks with built-in dynamic actions.
• Secure Cryptographic Validation: Uses AS_CRYPTO internally, saving you from implementing signature and key management manually.
• Rapid Deployment: Focus on business logic while the plugin handles WebAuthn integration.

Plugin Features

• One-click enrollment and authentication setup
• Automatic browser capability detection
• Configurable UI elements and messages
• Comprehensive error handling

Using the Plugin

Follow these steps to use the plugin, referencing the full documentation provided in our README:

Prerequisites

• Install AS_CRYPTO Package
  • Download and install AS_CRYPTO from the AS_CRYPTO GitHub repository
  • Required for secure cryptographic operations
  • Follow installation instructions in the repository README

Step 1: Plugin Installation

1. Download the Plugin
   • Get the latest release from the official repository
   • Review release notes for version-specific information
2. Import the Plugin
   • Navigate to Shared Components → Plugins in your APEX application
   • Import the downloaded plugin file
   • Configure application-level attributes:

     • Dialog titles
     • Custom messages

Step 2 (optional): Database Setup
Create the credential storage table with the following structure:

CREATE TABLE biometrics_credentials (
    id NUMBER GENERATED BY DEFAULT ON NULL AS IDENTITY,
    user_id VARCHAR2(255) NOT NULL,
    credential_id VARCHAR2(255) NOT NULL,
    public_key CLOB NOT NULL,
    created_at TIMESTAMP WITH TIME ZONE DEFAULT SYSTIMESTAMP NOT NULL,
    last_used_at TIMESTAMP WITH TIME ZONE
);

Step 3: Dynamic Action Setup
After installing the plugin, you'll need to set up the necessary dynamic actions to handle both enrollment and authentication. Here's a detailed guide on configuring each:

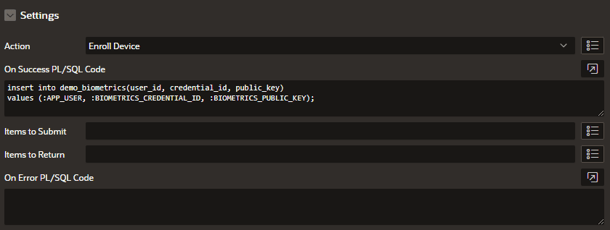

1. Enrollment Configuration
   This action registers a new passkey credential for a user.



   Configuration Steps:

   1. Create a Dynamic Action on your enrollment button/link
   2. Set Action: "Viscosity | Passwordless Authentication [Plug-In]"
   3. Set Action Type: "Enroll"
   4. Set up the "Success" handler with PL/SQL code to store the credential
   Example Success Handler:




   -- Store the credential after successful enrollment
   INSERT INTO biometrics_credentials (
       user_id,
       credential_id,
       public_key
   ) VALUES (
       :APP_USER,
       :BIOMETRICS_CREDENTIAL_ID,
       :BIOMETRICS_PUBLIC_KEY
   );


   Optionally, you can also set up an "Error" handler to manage enrollment failures according to your application's needs.

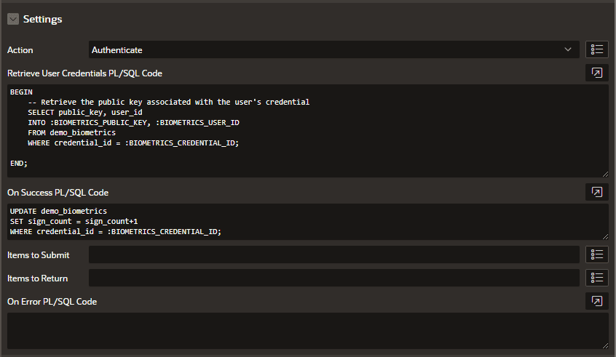

2. Authentication Configuration
   This action verifies an existing passkey credential.



   Configuration Steps:

   1. Create a Dynamic Action on your login button
   2. Set Action: "Viscosity | Passwordless Authentication [Plug-In]"
   3. Set Action Type: "Authenticate"
   4. Configure the required PL/SQL code:

      Credentials Retrieval:




      BEGIN
          -- Retrieve stored credential for verification
          SELECT public_key, user_id
          INTO :BIOMETRICS_PUBLIC_KEY, :BIOMETRICS_USER_ID
          FROM biometrics_credentials
          WHERE credential_id = :BIOMETRICS_CREDENTIAL_ID;
      END;




      Success Handler (Optional):





      -- Update last used timestamp after successful authentication
      UPDATE biometrics_credentials
      SET last_used_at = SYSTIMESTAMP
      WHERE credential_id = :BIOMETRICS_CREDENTIAL_ID;

3. Status Check Configuration (Optional)
   This action checks if a user has a registered passkey.

   Configuration Steps:

   1. Create a Dynamic Action on page load
   2. Set Action: "Viscosity | Passwordless Authentication [Plug-In]"
   3. Set Action Type: "Check Enrollment Status"
   4. Configure Settings:

      • Display Button When: "Credentials Found" or "No Credentials"

Troubleshooting Guide: Common Issues and Solutions

1. Enrollment Failures

   • Verify browser compatibility
   • Check for existing credentials
   • Ensure proper SSL configuration
   • Validate user permissions
2. Authentication Errors

   • Verify credential hasn't expired
   • Check signature algorithm matching
   • Validate challenge response
   • Review server logs for details
3. Plugin Configuration

   • Confirm table structure matches
   • Verify PL/SQL parameters
   • Check JavaScript console
   • Review APEX debug logs

Performance Considerations

Our benchmarks show:

• Average enrollment time: < 2 seconds
• Authentication time: < 1 second
• Database impact: Minimal (< 1kb per credential)
• Network usage: ~60% less than password auth

Conclusion

Implementing passkeys in Oracle APEX represents a significant step forward in application security and user experience. Our plugin makes this transition seamless, allowing developers to focus on building great applications rather than wrestling with authentication complexity.

The future of authentication is passwordless, and with tools like this, that future is already here. We encourage you to try the plugin, share your feedback, and join us in making the web more secure and user-friendly.

Additional Resources

• Plugin Documentation
• WebAuthn Specification
• FIDO Alliance

Get Started Today

Download the plugin from our GitHub repository and join our community of developers building secure, passwordless applications with Oracle APEX.

This plugin was created by @kevintech and @viscosityna, who continue to maintain and improve it based on community feedback.

Have questions or feedback? Join our discussion forum or open an issue on GitHub.
